Base Developer Kit PBT With 30% Glass Fibre UL94 V-0 Rating Material

Brand Name : LongJoin

Model Number : 741J

Place of Origin : China

Price : negotiable

Packaging Details : Different packaging methods are adopted according to different modes of transport.

Payment Terms : Western Union,MoneyGram,T/T

Rated Voltage : Maximum 30VDC

Applicable current : Maximum 1.5A

Material : PBT with 30% glass fibre (UL94 V-0 rating)

Terminal Material : Brass 0.8mm thick, tinned

Working Temperature : -40℃~ + 70℃

Real-world Scenarios : Next-Gen Smart Poles

Contact Now

Base Developer Kit PBT With 30% Glass Fibre UL94 V-0 Rating Material
741J Base

The Shanghai LONGJOIN wireless controller housing kit is based on the 700 interface and is primarily used in lighting energy-saving control and other controller products with built-in electronic components. The power connection utilizes standard Zhaga plugs, while the signal connection employs tinned copper sheets to ensure stable transmission and achieve intelligent control of lighting equipment.

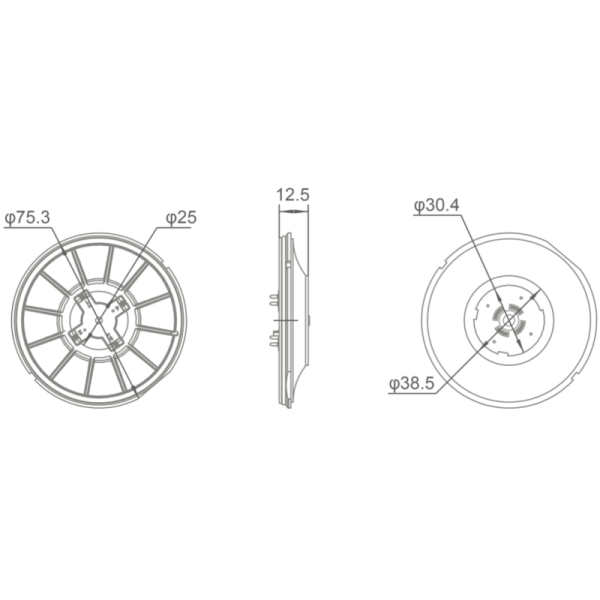

Product Dimensions
Base Developer Kit PBT With 30% Glass Fibre UL94 V-0 Rating Material
Supporting Shell Components
Base Developer Kit PBT With 30% Glass Fibre UL94 V-0 Rating Material
Technical Specifications
Model 741J
Rated Voltage Maximum 30VDC
Applicable Current Maximum 1.5A
Material PBT with 30% glass fibre (UL94 V-0 rating)
Terminal Material Brass 0.8mm thick, tinned
Working Temperature -40℃ to +70℃
Frequently Asked Questions
Q1: What is the Base Developer Kit PBT With 30% Glass Fibre UL94 V‑0 Rating Material?
A: It is a high-performance base developer kit made of PBT material with 30% glass fibre and UL94 V‑0 flame retardant rating, used for smart lighting and IoT module testing.
Q2: What material is used for this base developer kit?
A: It adopts PBT engineering plastic reinforced with 30% glass fibre, featuring high mechanical strength and stability.
Q3: What are the benefits of 30% glass fibre reinforcement?
A: It significantly improves rigidity, heat resistance, deformation resistance and dimensional stability for long-term reliable use.
Q4: What does UL94 V‑0 flame retardant rating mean?
A: UL94 V‑0 means the material self-extinguishes quickly within 10 seconds, no flaming drips, ensuring high safety in electrical applications.
Q5: In which applications is this base developer kit mainly used?
A: It is widely used in R&D, testing and verification of Zhaga / NEMA controllers, smart street lights, photocontrol and dimming modules.
